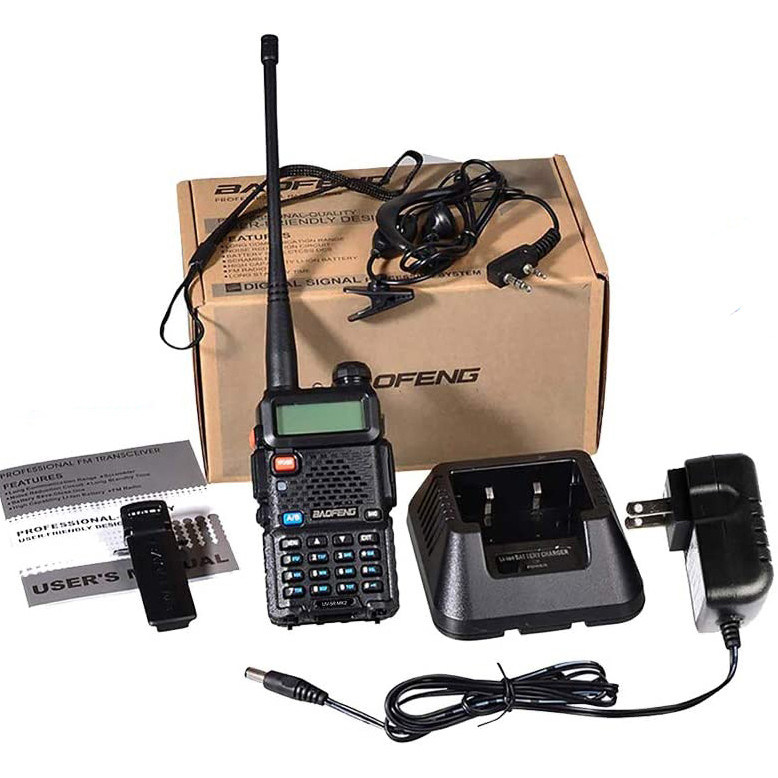

Baofeng UV-5R Handheld Dual Band Camping Walkie Talkies

Product Details

Place of Origin: China

Brand Name: Baofeng

Certification: CE ROHS

Model Number: UV-5R

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: 510*375*570mm/50/23.5/24.3

Delivery Time: 15-25 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 10000Paris Per Month

Get Best Price
Highlight:

dc 7.4v two way walkie talkie

,

2.5ppm 2 way radio walkie talkie

Operating Voltage:
DC 7.4V
Weight:
238g(including Battery, Antenna)
Dimension(W X H X D):
58*240*32
Antenna Impedance:
50Ω
Frequency Range:
65-108MHz(FM Receive Only) 136-174MHZ And 400-520MHZ (TX/RX)
Antenna:
SMA -Female
Power Adapter:
Input: AC100-240V, 50-60Hz; Output: DC10V/500mA;
Frequency Stability:
±2.5ppm
Channel No.:
128
Mode Of Operation:
Simple Or Semi-duplex
Earpiece / Mic Type:
Kenwood Plug Type
Operating Voltage:
DC 7.4V
Weight:
238g(including Battery, Antenna)
Dimension(W X H X D):
58*240*32
Antenna Impedance:
50Ω
Frequency Range:
65-108MHz(FM Receive Only) 136-174MHZ And 400-520MHZ (TX/RX)
Antenna:
SMA -Female
Power Adapter:
Input: AC100-240V, 50-60Hz; Output: DC10V/500mA;
Frequency Stability:
±2.5ppm
Channel No.:
128
Mode Of Operation:
Simple Or Semi-duplex
Earpiece / Mic Type:
Kenwood Plug Type
Baofeng UV-5R Handheld Dual Band Camping Walkie Talkies

Baofeng UV-5R Best Dual Band Handheld Good Ham CampingWalkie Talkie Radio



Products Information

Frequency Range: 65-108MHz(FM Receive only) 136-174MHZ and 400-520HZ (TX/RX)
Channel No.: 128
Frequency Stability: ±2.5ppm
Antenna: High gain Dual Band antenna
Antenna Impedance: 50?
Operating Voltage: DC 7.4V
Mode of operation: Simple or semi-duplex
Dimension (W x H x D): 100 x 52 x 32 mm
Weight: 250g (including battery, antenna)
Transmitter Output power: 4W / 1W (Max 5W)
Modulation Mode: 16k?F3E / 11k?F3E
Maximum deviation: <5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation: <7?W
Adjacent Ch. power: <=-65dB(Wide) / <=-60dB(Narrow)
Pre-emphasis characteristics: 6dB
Current: <=1.6A(5W)
CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity: 8-12mv
Intermediation distortion: <10%



Dual band / dual display / dual standby A/B band independent operation(UV UU VV)
128 groups channels storage Shortcut menu operation mode
VFO & Memory channels scan Emergency Alarm
Time-out Timer (TOT) 0~9 grades VOX selectable
PTT & ANI ID FM radio and 25 stations storage
Voice commanding 50 CTCSS/104 DCS
High/Low TX power selectable Busy channel lock-out(BCLO)
DTMF function OFF SET function
Wide/Narrow Band(25kHz/12.5kHz) Yes
VOX function Yes
Busy lockout function Yes
Frequency step Yes 2.5/5/6.25/10/12.5/25KHz
Scanning function Yes
Monitor function Yes
Time-out Timer (TOT) function Yes
LCD display Yes
Dual display Yes
Battery voltage display Yes
Channel name display editing Yes
Signal strength indicator Yes
Keypad lock function Yes
Built-in Led torch Yes
FM radio Yes
Wire clone function Yes
Emergency alarm function Yes
Low battery alarm Yes
Power saving function Yes
High/Low TX power selectable Yes 5W/1W
ROGER SET Yes
Chinese English voice prompt Yes
PC software programmable Yes
Rated Voltage 7.4V DC±10%
Output power ≤ 5W
Battery type Li-ion battery
Battery capacity 1800mAh
Working temperature -20~+50°C
Antenna Impedance 50Ω
Weight 255g
Dimension(L×W×H) 58×32×110mm(Not Antenna)
Specification
Frequency stability ±2.5ppm
Carier wave tolerance 5ppm
Modulation 16kΦF3E / 11kΦF3E
Max frequency deviation

< 5kHz(Wide)

< 2.5kHz(Narrow)

Modulation character 6 dB per fold frequency patch
Emission current < 1.6A(5W)
CTCSS / DCS

0.5±0.1kHz(Wide)

0.3±0.1kHz(Narrow)

Sensitivity < 0.16μV(12dB SINAD)
Silent sensitivity < 0.2μV
Intermediation Distortion <10%
Inter modulation 8-12mv
Adjacent channel selectivity( wide/narrow) <-65dB(Wide) <-60dB(Narrow)



First of all, uv-5r model has an excellent price for such high quality product. BaoFeng radios are famous for being small in size which makes them comfortable to use, and this model is not an exception.



This BAOFENG UV-5R transceiver is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.





Our Advantage and Strength

1. To go with the global online business trend, many models with smaller MOQ request.



2. 1.  Deep cooperated with professional forwarder company, can offer door to door service at very competitive price (Including railway service for the belt and road countries)



3. With about 60 workers, 3 engineers and 6 QC. different professional devices on radio signals receiving, launching and testing.



4. Very good at small electronic products handling. Assembling, testing and export, we have strong supply chain system, can purchase high quality raw material at very competitive price.




FAQ



Q1: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;
A2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.



Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery



Q3. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q4. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5. What is your terms of delivery?
A: FOB, CFR, CIF



Q6:Why choose US?
1).Strong and rich R&D and manufacture capability.
2).Lead time - large order is fast. 7-10days preparing materials, then production 5,000-10,000pcs output per day.
3).Professional and 7*24hours service: our foreign trade department will support you after sales with more than 10 years export experience and service you anytime.
